Technology

ACFRI System

  • Connected Chill

    Connect your ACFRI blast chiller freezer to your smartphone

    zoom simply usb

    Key features

    • Start your blast chilling/deep freezing cycle from your smartphone
    • Product identification
    • Cycle operating data logbook
    • Automatic compliant cycle calculation (+63°C to +10°C)
    • Transfert operation data to your traceability system
      i-minilide  e-pack hygiene


  • Ergonomy

    • Ultra simple controller, monocard, 4 keys.
    • 4 automatics modes (core probe or timer, blast chilling or deep freezing).
    • Programmable menu allowing to choose the available modes (choice to neutalize deep freezing mode).
    • Programmable automatic defrosting at the cycle start by ventilation continuous work.
    • Offset controller keyboard (HE10 connector type).

    inpi

    Patent n°1355609 of 24/05/2019

    		eco

    Demande de brevet déposée

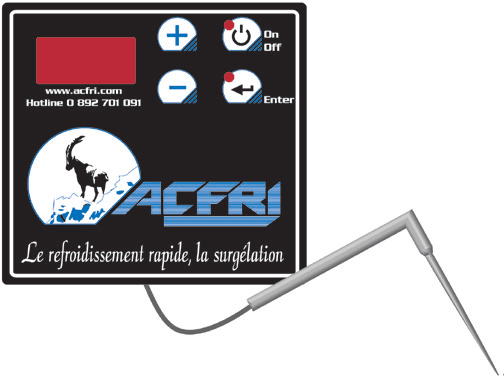

    New Simply 3

    • Display ergonomy improvement of temperature (fixed display) et du temps (flashing display)
    • Cycle duration display between 2 choosen core temperatures for the whole cycle duration
    • Cycle synthesis display when shifting to storage (legal duration, product code and cycle type).
    • End of cycle alarm delay settings
    • Double display and control for tunnel type machines (option)
    • Microprocessor programing from USB key (option)
    • Ethernet card compatible

  • Reliability

    Demonstration and training objective: understand, see and use to better control


      • Tropicalized Machine CEM and ROHS compliant
      • Autotest and dysfunction alarm code (probe, ventilation, group defaults)



    New Simply 3

    • Cold group defaults (DF3) dedicated management
    • WAGO type connection terminals for probe direct plugging on card
    • Inversion settings for ambient probes and core probes in order to guarantee a minimum working in case of defective probe (without cable modification)
    • Auto restart on electric micro-interruptions in the selected mode (product storage maintained)

  • Security

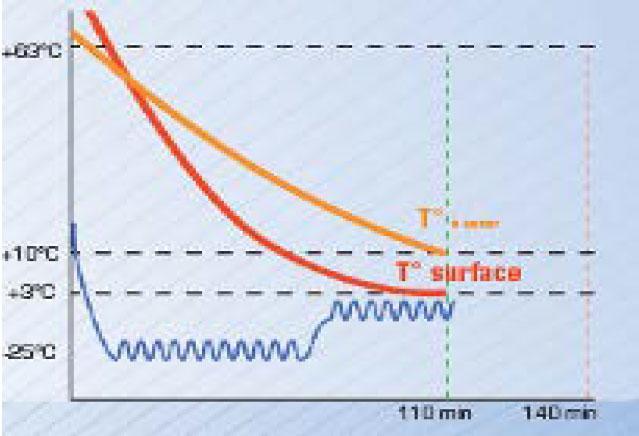

    exemple cycle sequence

      • Cycle temperature self-adjustement by programmable blowing sequences to the nearest degree (see graphic example)
      • Multi-points core probes and independant ambient probe.
      • End of cycle alarm visual and audible (powerfull)
      • Automatic storage mode at the cycle's end adjustable at the nearest degree.
      • End of cycle ventilation maintaining to speed up storage temperature reach and facilitate products homogeneity.
      • End of cycle core temperature setting at the nearest degree (example : +3°C to +10°C).
      • RS 485 output, BUS protocole mode, complete interfacing with traceability solution (MICROLIDE)

    New Simply 3

      • Stainless steel bent and reinforced core probes and room probes with large amplitude + 90°C / - 50 °C
      • Core probes rise intertia temporization in order to avoid a core probe inadvertent default on too hot product
      • Proble cycle minimum time setting so that to secure the cyle in case of core probe worng position.
